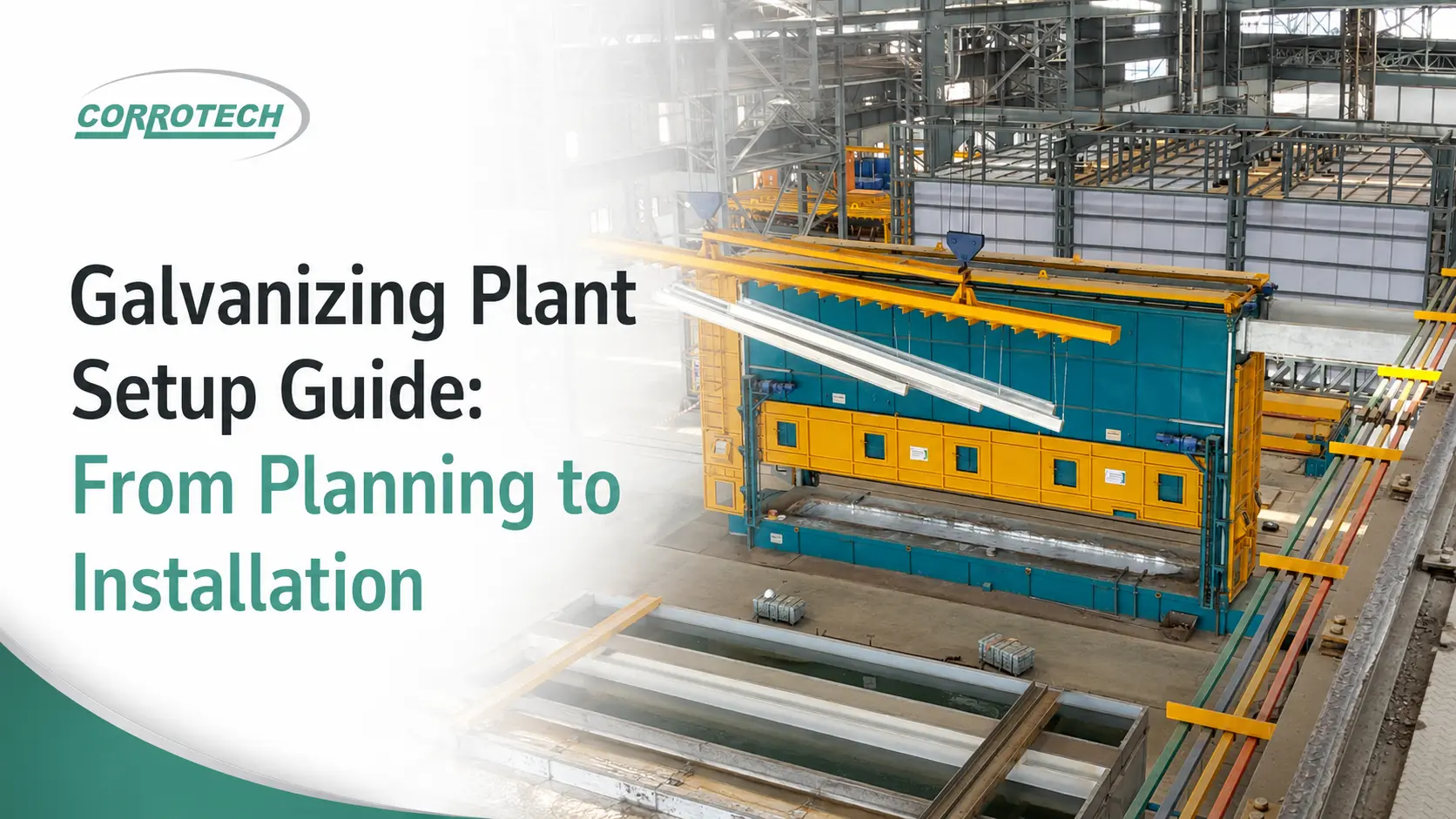

Galvanizing Plant Setup Guide: From Planning to Installation

Setting up a galvanizing plant is a significant capital investment. Done right, it positions your business to serve a growing demand for corrosion-protected steel across construction, infrastructure, automotive, and utility sectors. Done poorly, it leads to costly rework, regulatory issues, and underperforming operations.

This guide is written for industrial manufacturers, project engineers, and business owners who are either planning a new galvanizing facility or evaluating an expansion. We’ll walk through every major phase, from understanding the process and choosing the right layout, to estimating setup costs and navigating installation.

What Is the Galvanizing Process?

Before jumping into setup specifics, it helps to understand what you’re actually building around.

Galvanizing is a surface treatment process that applies a zinc coating to steel or iron to protect it from corrosion. The most widely used method is hot dip galvanizing, where fabricated steel is immersed in a bath of molten zinc at around 450°C. The zinc bonds metallurgically with the steel, forming a durable, multi-layer coating that resists rust for decades.

The hot dip galvanizing process follows a defined sequence:

1. Degreasing: Removing oil, grease, and surface contamination
2. Rinsing: Washing off the degreasing chemicals
3. Pickling: Acid treatment (usually hydrochloric acid) to remove mill scale and rust
4. Rinsing: Again, to neutralize the acid
5. Fluxing: Applying a flux solution to prevent oxidation before dipping
6. Drying: Removing moisture from the flux layer
7. Galvanizing: Immersing steel in the molten zinc bath
8. Quenching and finishing: Cooling the product and inspection

Each stage requires specific tanks, temperature controls, fume management systems, and material handling equipment. Understanding this sequence is the starting point for every design and layout decision you’ll make.

Key Phases of Galvanizing Plant Setup

1. Feasibility and Business Planning

Before you finalize anything, you need a clear picture of your market demand, production targets, and return expectations.

Ask yourself:

• What annual tonnage do I need to process?
• What types of products will I galvanize, structural steel, tubes, small parts, or a mix?
• Is my target market local, regional, or export-oriented?

Your answers directly shape the size of your kettle (galvanizing bath), the number of pretreatment tanks you’ll need, and the overall footprint of your facility.

This is also the phase where you assess available land, utility infrastructure (power, water, gas), environmental clearances required in your state, and local industrial zoning norms.

2. Galvanizing Plant Design and Layout Planning

A well-thought-out galvanizing plant layout is one of the most critical factors in long-term operational efficiency. Poor layout leads to bottlenecks, material handling delays, and higher operating costs.

Key layout principles:

• The pretreatment line (degreasing through fluxing) should flow in a straight or U-shaped path toward the kettle
• The overhead crane or monorail system must have sufficient reach and load capacity across all stations
• Fume extraction systems need to be integrated from the design stage, not added as an afterthought
• Adequate spacing around the zinc kettle for safe maintenance and emergency access
• Separate bays or areas for material receiving, jig preparation, and finished goods inspection

The galvanizing plant design also needs to account for:

• Building height: Tall structural steel members need overhead clearance
• Floor loading: Zinc baths, acid tanks, and cranes place significant point loads
• Ventilation and drainage: Acid fumes and rinse water require proper management systems
• Future expansion: Leave room to scale if you plan to grow production later

For batch-type hot dip galvanizing plants, a linear flow from pre-treatment to the kettle is generally preferred. For high-volume operations handling smaller components, centrifuge galvanizing (spin galvanizing) setups follow a slightly different configuration.

3. Equipment Selection for a Hot Dip Galvanizing Plant

The equipment you choose sets the ceiling for your plant’s quality, throughput, and energy efficiency. Here’s a breakdown of the core equipment involved in a hot dip galvanizing plant setup:

The zinc kettle is arguably the most important investment. It is typically fabricated from low-silicon steel and must be sized according to your longest and widest product. A poorly specified kettle leads to production constraints that are expensive to fix later.

Crane capacity must match your maximum piece weight, with a safety factor built in.

4. Infrastructure and Utility Requirement

A galvanizing facility has demanding utility needs. You’ll need to plan for:

• Power supply: Heavy-duty 3-phase connection for cranes, heating, and auxiliary equipment
• Natural gas or LPG: For kettle heating and drying ovens
• Water supply: For rinsing tanks and quench baths
• Effluent treatment plant (ETP): Mandatory for treating acidic and zinc-bearing wastewater before discharge
• Acid storage: Proper bunded acid storage areas with spill containment

Environmental compliance is non-negotiable. Most states require consent from the State Pollution Control Board before commissioning. Build your effluent treatment system and fume scrubbing equipment from day one, retrofitting later is costlier and operationally disruptive.

5. Galvanizing Plant Setup Cost in India

One of the most common questions from investors and business owners is:
what is the galvanizing plant setup cost in India?

The honest answer is, it depends on several factors:

• Plant capacity (tonnes per day)
• Kettle size and material
• Level of automation
• Land and civil construction costs in your region
• Effluent treatment plant scope
• Local utility connection charges

For a basic to semi-automatic hot dip galvanizing plant, equipment packages from Indian manufacturers currently start around ₹1 crore to 3 crore for machinery alone. Add civil construction, ETP, land, and working capital, a complete operational setup typically ranges from ₹1.5 crore to ₹6 crore or more, depending on plant size, location, and automation level.

For an accurate project cost, a detailed project report (DPR) based on your specific kettle size and site is the right next step.

6. Installation and Commissioning

Installation follows a defined sequence:

1. Civil work completion: RCC floors, acid-resistant lining for tank pits, crane gantry structure
2. Crane and monorail installation: Before most tanks are placed
3. Tank fabrication and installation: Pretreatment tanks, quench tanks, acid storage
4. Kettle installation: Heavy equipment, requires precise leveling and refractory work around heating systems
5. Utility connections: Gas lines, electrical panels, water connections, drainage
6. ETP installation: Should be commissioned alongside the plant, not after
7. Trial runs and process calibration: Testing bath chemistry, zinc temperature, flux concentration, and process timings
8. Operator training: Critical before commercial operations begin

Commissioning is not just switching the plant on. It involves setting up process parameters, training your team on safety procedures, and fine-tuning the pretreatment chemistry for the specific steel grades you’ll be processing.

Common Mistakes to Avoid in Galvanizing Plant Setup

Even experienced engineers make planning errors that become expensive problems later. A few worth noting:

Undersized kettles

 Buying a smaller kettle to save upfront cost, then being unable to process larger structural pieces your customers need.

Ignoring effluent treatment early

 ETP is often treated as an afterthought. Regulatory authorities will not allow you to operate without it.

Poor crane planning

 A crane that can’t reach all stations, or lacks adequate lifting capacity, creates daily bottlenecks.

Inadequate acid storage design

 Acid spills without proper containment create safety hazards and environmental liability.

No future expansion allowance

Plants often grow. Designing with zero room for expansion forces costly civil modifications later.

Why Plant Design Expertise Matters

Setting up a galvanizing plant is not a process where you want to learn by trial and error. Every decision, from kettle dimensions to pretreatment tank sequencing to exhaust stack design, has downstream consequences.

Working with experienced plant designers and equipment suppliers who understand the galvanizing plant process end to end helps you avoid the most common and costly mistakes.

Arvind Corrotech Limited brings deep experience in galvanizing plant design, supply, and turnkey setup. From layout planning and equipment supply to installation support and process commissioning, we work with manufacturers and business owners to help them build facilities that are operationally sound, compliant, and built for long-term performance.

If you’re evaluating a new plant or planning to expand an existing one, our team can help you structure a realistic project plan and connect you with the right technical expertise.

Conclusion

A well-planned galvanizing plant setup is a long-term asset. The investment you make in getting the design, equipment, and layout right from the start pays dividends through lower operating costs, higher throughput, and fewer regulatory headaches.

The key is to treat planning and design as seriously as the equipment purchase itself. Every hour spent getting the layout right, specifying equipment correctly, and building in proper environmental systems saves you significantly more in corrections later.

Frequently Asked Questions (FAQs)

1. How much land is required to set up a galvanizing plant in India?

 A small plant with a 4-metre kettle typically needs 2,000–3,000 sq. metres. Larger structural galvanizing plants may require 8,000 sq. metres or more, including space for pretreatment, galvanizing bay, storage, and truck access.

2. What is the minimum investment to start a hot dip galvanizing plant in India?

Equipment cost and total project cost are two different things. Machinery alone (kettle, furnace, tanks, crane) starts from ₹1 Cr onwards. But a fully operational plant,  including civil construction, ETP, utilities, and working capital,  typically requires ₹1.5 crore to ₹6 crore or more, depending on plant size, location, and automation level.

3. What licenses are required to operate a galvanizing plant in India?

 You need consent from the State Pollution Control Board (SPCB), a Factory License under the Factories Act, Fire NOC, and Hazardous Waste authorization for acid and zinc effluent handling. Apply before construction begins as approvals take time.

4. What is the difference between batch and continuous galvanizing?

 Batch galvanizing dips fabricated steel items individually, ideal for structural members, towers, and pipes. Continuous galvanizing runs steel strips or wire through the line at speed,  used in large-scale production. Most standalone Indian plants use the batch hot dip process.

5. How long does it take to commission a galvanizing plant?

 From civil work to first production, most plants take 6–12 months. Civil and structural work takes 3–6 months, equipment installation 1–3 months, followed by trial runs and process calibration before commercial operations begin.
